Sign-Pro is an App for programming Alpha and Betabrite signs with your iPhone, iPad, or iPod.
Use Sign-Pro to compose, preview, and send messages to your Alpha or Betabrite sign.
Dictate and type your messages using Sign-Pro Editor. Easily insert travel modes, fonts, colors, built-in
animations, time, date, and other eye-catching features into your messages.
Sign-Pro is available through the Apple App-Store. You receive a free trial that shows all Sign-Pro features
including the in-app sign simulator. Sign-Pro will only send a demo message until you follow the In-App Purchase
option which allows your messages to be seen on your sign.
Sign-Pro stores 100 messages for reuse as templates for creating new messages.
Customize your Sign-Pro Settings and your Default Message to make sign messaging quick, easy, and fun.

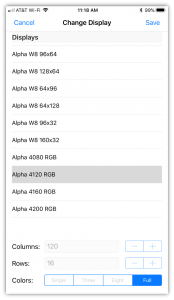

Choose Your Sign Model.
Edit Your Message.

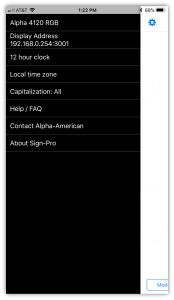

Sign-Pro App Settings.

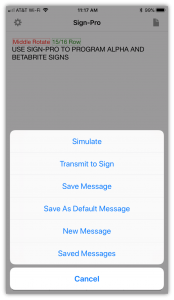

Transmit, Simulate, and Save Your Message.
Select the Transmition Type.

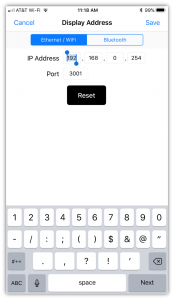

Set the Sign's IP Address'.

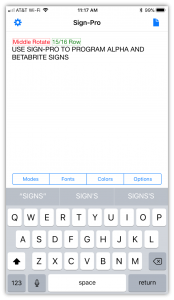

Message Editor
Easily insert Alpha and Betabrite Sign-Commands from the menu located just above the keyboard.
Format the messages
Change the color of displayed text
Change the font and size of displayed text
Specify the position of displayed text
Specify the way messages travel on and off the sign
Change the speed of displayed words, sentences, and messages
Insert the time of day and date into messages
Insert built-in animations into messages
and more.
Use Special Feature Codes to:
Specify the position of your messages (top line, middle line, bottom line, all lines, left side, or right
side).
Specify how your messages enter and exit the display.
Specify how fast or slow your messages play.
Change the color of messages (on multi-color signs).
Change the font, width, and height of the characters in your messages.
Insert animations into messages (on signs with built-in animations).
Display the current time of day in your messages.
Display the current date in your messages (on signs with the date feature).
Display the current temperature in your messages (on signs with a temperature sensor).
Change the spacing between the lines of a message (on multi-line signs with the line spacing feature).
Change where lines in a message end, to keep two or more words together on the same line.
Insert page breaks into messages that span more than one page. This is a handy feature with multi-line
signs.
Message Formats
Mode Codes
Mode Codes control how each line of your message enters and exits the display. Please see the Sign-Pro User Manual for additional codes.
Mode Codes always follow a Position Code.
Sign-Pro prompts for a Position Code after a Mode Code is selected.
Position and Mode Codes always display in pairs with the selected Position Code displayed first (Examples:
Top Hold, Bottom Roll Up, Fill Snow).
When Position and Mode Codes are used at the beginning of a message (or line), they control the way the
message (or line) enters and exits the display, unless a trailing Mode Code is inserted at the end of the
message (or line) to specify a different way for the message (or line) to exit the display.

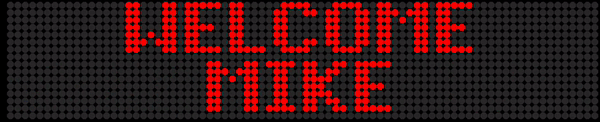

Roll Left Mode using 7-Pixel Characters on a Two-Line Sign

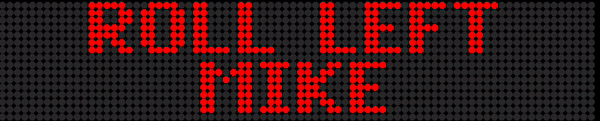

Roll Left Mode using 16-Pixel Characters on a Two-Line Sign
The Roll Left Mode Code causes the message (or line) to enter from right to left. The Roll Right Mode Code at the end of the message causes the message (or line) to exit from left to right.

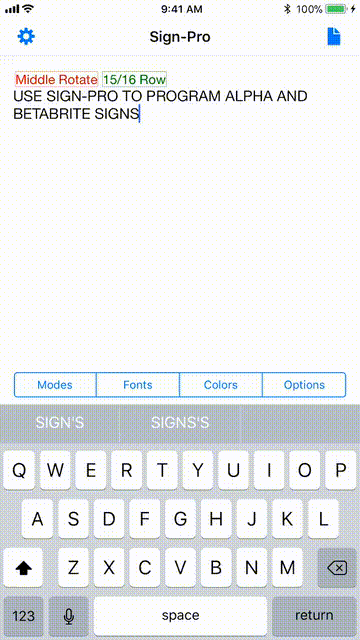

Sign Simulator
Preview your messages with Sign-Pro Simulator. It shows you how your messages will look on your sign. Sign-Pro Simulator is especially helpful when your sign is located somewhere where you can't see your message after you send it.
Show Your Message in the Simulator.
Saved Messages
Sign-Pro stores 100 messages for reuse as templates for creating new messages.
Customize your Sign-Pro Settings and your Default Message to make sign messaging quick, easy, and fun.
Wireless Communication Options for Sign-Pro
Sign-Pro supports wireless message transmission using the built-in Wi-Fi capabilities of your iPhone, iPad, or iPod when your sign is connected to a Local Area Network (LAN).

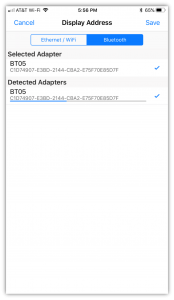

In addition, the Alpha BLE Adapter enables wireless communication using Bluetooth® Low Energy (BLE) technology. Sign-Pro transmits messages wirelessly to the Alpha BLE Adapter, which in turn relays them to your sign for display.
Trademark Notice:
Bluetooth® and Bluetooth Low Energy are used solely for descriptive purposes. Bluetooth® is a registered trademark of Bluetooth SIG, Inc. This product is neither affiliated with nor certified by Bluetooth SIG, Inc.
